| Scepanotrocha rubra: the trochal discs are covered by a membranous hood (1) |
| |
 |
| Scepanotrocha rubra: crop of the above image. The margin of the hood is marked by the triangles. There is a bulge in the middle of the deeply notched sulcus (arrowhead). (1) |
| |
 |
| Scepanotrocha rubra: ventral view, focal plane on the foot. Instead of toes there is only a stub. (1) |
| |
 |
| Scepanotrocha rubra: specimen from (6); dorsoventral view. |
| |
 |
| Scepanotrocha rubra: specimen from (3); dorsoventral view. |
| |
 |
| Scepanotrocha rubra: trophi (1) |
| |
 |
 |
| Scepanotrocha rubra: two different specimens with colored lipid droplets in the intestinum (2) |
| |
|
|
| Scepanotrocha rubra: head of the same specimen in two different focus planes. The left image shows the hood covering the trochal discs. (2) |
| |
|
|
| Scepanotrocha rubra: rostrum of specimen from (3) with divided rostrum lamella. |
| |
|
|
| Scepanotrocha rubra: foot with spurs of 3 different specimens. Upper images: specimens from (2); lower image: specimen from (3). |
|
| |
 |
| Scepanotrocha rubra: specimen from(2), squeezed; in contrast to most bdelloid species Scepanotrocha rubra shows only 4 nuclei in each vitellarium. (2) |
| |
 |
| Scepanotrocha rubra: crop of the above image. |
|
| |
 |
| Scepanotrocha rubra: Stomach and vitellarium from specimen from (3). The stomach shows a granular matrix in which pill-like pellets are visible. Vitellarium with 4 nuclei. |
| |
 |
| Scepanotrocha rubra: trophi of specimen from. (2) |
| |
 |
| Scepanotrocha rubra: trophi of specimen from. (3) |
| |
 |
| Scepanotrocha rubra: specimen from (4), living in retort cells of Sphagnum. Another bdelloid rotifer that lives in retort cells is Habrotrocha roeperi. |
|
| |
| |
| |
| Location: Hattingen Oberstüter, beech forest (1); Ohligser Heide, (2);(4); NSG Schwalm, (3); Oberrasen, South Tirol (5); Bargerveen, NL, |

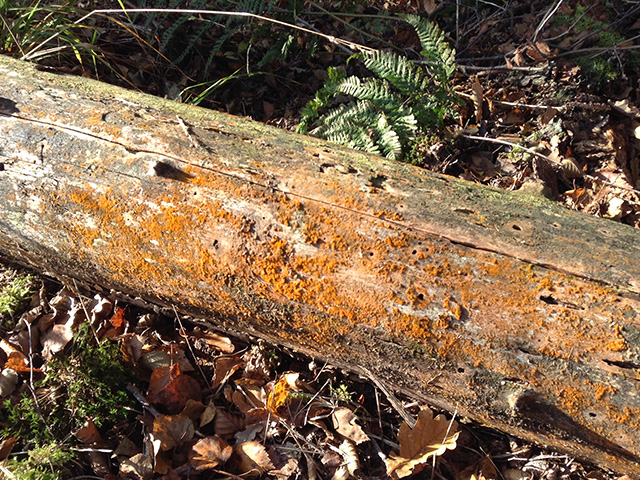

| Habitat: beech litter (1); Sphagnum retort cells (2); fungus on dead tree. See image below (3); venn (6) |
 |
| Date: 20.09.2012 (1); coll. 06.12.2015, img 06.12.2015 (2), 12.12. 2015 (4); Date: 22.10.2015 (3); 06.10.2014 (5); 01.5.2009 (6) |
| |
| |
| |
